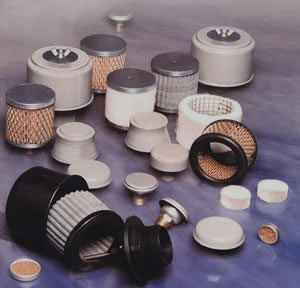

Breather Filters
The Most Complete Line of
Breather Filters - In Stock
1/8” thru 2” MPT connection sizes 1 to 80 CFM flow ratings
Why You Need a Falls Filtration Breather
Breathers are used wherever there is a vented enclosure. The installation of a Falls Filtration Breather Filter in the air vent prevents dirt and other foreign matter from entering the enclosure. Most Falls Filtration Breathers are available with weatherhoods for outdoor applications. When used on gearboxes or differential housings, the Falls Filtration Breather prevents oil loss by retaining oil droplets and draining the oil back to the sump.Breather Types |
Style |
Miniature |
MB |
Low Profile |
LL |
Disc |
W |
Lampshade |
LB |
Basic |
OH |
Hooded Metal |
HS |
Hooded Plastic |
HP |
Falls Filtration Breather filters can help you assure system cleanliness. Whatever your requirements, Falls Filtration has the solution with its complete line of low-restriction, efficient and economical Breather Filters.
Features of the Falls Filtration Breather Filters
- Low Profile Designs allow maximum filtration area within minimal space.
- High-Capacity Models assure system cleanliness under high contaminant loading conditions.
Choice of Media — you select the optimum media for your particular application for long life, low restriction and high efficiency.
Choice of Models — disposable, cleanable or replaceable — element models are available. You can select the most economical model for you operating conditions and maintenance schedules.
Weatherhooded Models — are available for outdoor applications.
MODEL |
CONNECTION SIZE |
MAXIMUM FLOW (CFM) |
MEDIA TYPES |
DISPOSE-ABLE |
CLEAN-ABLE |
REPLACEABLE ELEMENT |
|||
POLY-ESTER |
KNITTED |
METAL |
PLEATED |
||||||
MB |
1/8" - 1/2 ” MPT |
10 |
• |
• |
|
|
• |
|
|
LL |
1/8" - 3/4" MPT |
15 |
• |
• |
|
|
• |
|
|
W |
3/4" - 3-1/2" Dia. |
60 |
|
|
• |
|
|
• |
|
LB |
1/8" - 3/4" MPT |
20 |
• |
|
• |
• |
• |
|
|
OH |
1/8" - 3/4" MPT |
25 |
• |
|
• |
• |
• |
|
|
HS |
1/2" - 1-1/2" MPT |
35 |
• |
|
• |
• |
|
• |
• |
HP |
3/4” - 2” |
80 |
• |
|
• |
• |
|
• |
• |
Typical Applications
Falls Filtration Breather Filters are designed for use on the following typical applications:
Gear Boxes |
Day Tanks |
Hydraulic Reservoirs |
Differential Housings |
Transmissions |
Small Compressor Air Intakes |
Crankcases |
Oil Storage Tanks |
Fuel Oil Tank Vents |
Machinery Housings |
Typical Applications
Additional information is only a phone call away. Our customer Service Department can assist you on those special applications that require nonstandard materials, sizes or connection fittings.
In addition, our District Sales manager in your area can call on your facility to review your specific requirements. For technical assistance, please call (330) 928-4100.
