Multi Maze Industrial Air Intake

Available in Open & Closed Circut.

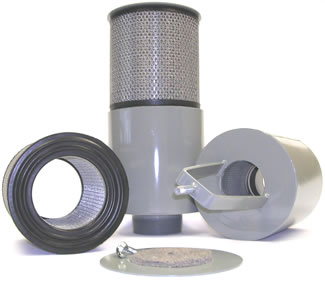

Multi Maze intake air filter/filter silencers offer oil-wetted wire mesh of dry pleated paper media with 400-6,000 CFM capacity.

Performance

Impingement principles provide up to 96% arrestment on harmful dirt particles 10 microns or larger on the oil wetted models, the dry paper models will achieve 99% arrestment on particles 5 microns or larger. Pressure drop across a clean filter element is less than .25” WG.

Depending on connection size, total loss across a complete unit is generally less than 3” WG. and is only slightly higher in the BWM type filters-silencer models.

Attenuation

Type MU filter silencers provide attenuation in the frequency ranges where noise levels of reciprocating compressors and engines are most objectionable. The BW models with additional acoustical components, were specifically designed for installation to lobe type compressors and centrifugal blowers.

For specific information refer to the chart below.


Sound Decibel Attenuation Table

(given in decibel reduction for silenced model)

When servicing is required, the element can be quickly removed and washed in a commercial solvent. In most cases, dirt accumulations can be removed with an air hose or by shaking off the dust.

Frequency

150-300

300-600

600-1200

1200-2400

2400-4800

4800-9600

MU

12

8

7

10

11

11

BWM

12

13

13

11

13

13


Construction

Relatively lightweight, Multimaze filters and filter-silencers can be supported directly on the air intake. The wire mesh filter element is of crimped galvanized screen cloth which becomes progressively denser. This results in greater dirt holding capacity, thus reducing service frequency intervals. Media will not pack down or channel due to vibration. The pleated-paper element is of pleated construction and employs a protective outer wrap to prevent damage to pleats.

Optional weather hoods are available on all models. Finish is grey enamel.

Sizing

Refer to the table on the opposite page.
Capacities indicated are for constant flow.

Servicing

Unscrew wing nut and remove element. Wire mesh models require washing the element in a commercial cleaning detergent. Recharge with SAE 30 oil. Allow unit to drain prior to placing back in service. The pleated- paper element is usually considered a disposable. The silencer chambers of the silenced models require no attention during servicing.

CAUTION

DO NOT USE GASOLINE FOR AN ACCEPTABLE CLEANING FLUID!

Multi Maze Sizing & Specifications:

Request a MultiMaze Brochure in PDF Format

Request a Closed Circut MultiMaze Brochure in PDF Format
