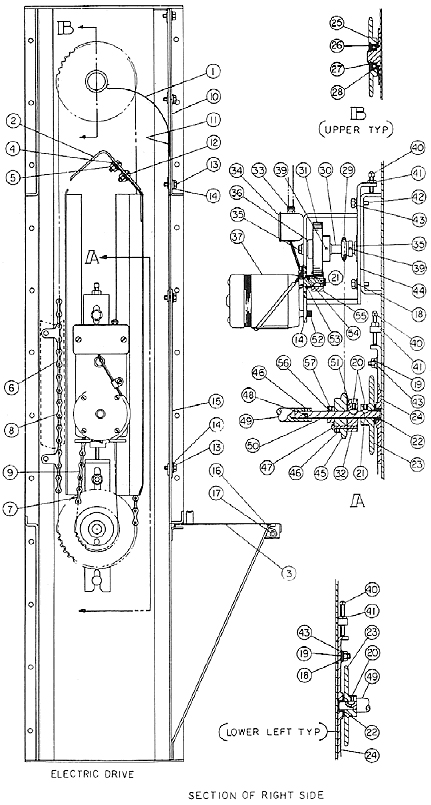

Automaze Parts Diagram & List

PARTS LIST

ITEM NO.

QTY. REQD.

PART OR
IDENTIFYING NO.

NOMENCLATURE OR DESCRIPTION

57

1

17613

Set screw 5/16-18 UNC x ½

56

1

AA2081-38

Set screw collar

55

1

AA2081-24

Gear

54

1

AA2081-39

Pin

53

1

36629

Snap ring

52

3

M60FS420-10P

Hex socket screw ¼-20
UNC x 5/8

51

1

AA1277

Key woodruff No. 9

50

1

AA1207

Shaft lower

49

1

See chart

Drive shaft

48

1

59-048-219-1000

Roll pin .219 dia. X 1.000

47

1

AA1088

Shear pin

46

1

17699

Set screw ¼-20 UNC x ¼

45

1

AA980

Sprocket

44

1

AA2081-128

Adjustment brachet

43

4

22503C

Flat washer 3/8

42

2

17237C

Hex cap screw 3/8-16 UNC x 1 ¼

41

3

21201C

Hex nut 5/16-18 UNC

40

3

18423C

Set screw 5/16-18 UNC x 2 ½

39

2

EW569

Roll pin

38

3

22701C

Lock washer ¼

37

1

AA2081-146

Gear motor 120-60-1

36

1

AA2081-135

Spacer

35

2

AA1205

Bearing

34

1

201159

Cover

33

2

AA4488

Box connector

32

1

AA979

Shear pin collar

31

1

AA2081-81

Gear

30

1

AA2081-171

Shaft

29

1

AA2081-55

Sprocket

28

2

AA1883-82

Ball bearing upper sprocket

27

2

36334

Retaining ring upper sprocket

26

2

36331

Retaining ring upper sprocket

25

2

AA1883-1

Sprocket, upper

24

2

AA1200

Sprocket, adjustment

23

2

AA1266

Sprocket, lower

22

2

AA1205

Bearing lower sprocket

21

3

AA1276

Key woodruff No. 5

20

3

17697C

Set screw ¼-20 UNC x 3/8

19

2

21202C

Hex nut 3/8-16 UNC

18

4

22703C

Lock washer 3/8

17

2

17208C

Hex cap screw ¼-20 UNC x 2

16

2

30400C

Lock nut ¼-20 UNC

15

2

AA84*

Panel removal plate

14

8

22701C

Lock washer ¼

13

8

17201C

Hex cap screw ¼-20 UNC x 2

12

4

34144C

Screw 10-24 UNC 5/8

11

4

14502

Rivet round head 1/8 dia. X ¼

10

1

See chart

Top front plate

9

1

AA2081-120

Master chain link (drive)

8

2

AA1278

Master chain link

7

1

AA2081-125

Chain (drive)

6

2



Special chain—
order to length

5

4

20712C

Hex nut 10-24 UNC

4

4

22700C

Lock washer No. 10

3

1

See chart

Tank cover

2

2

AA1435

Spring rear guide

1

2

AA1449

Spring top front plate
