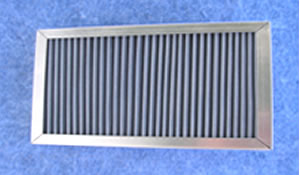

P1 Panels

Light Weight Viscous Impingement for Electronic Cabinet Filtration

Widely used where light weight is a prime consideration. Effectively protects against entrance of dust and entrained water. Flocked metal screen media provides higher efficiency filtration in forced draft applications

Construction

Filter media is made from two layers of pleated flocked wire screen cloth, frame is available in P1A aluminum and P1 steel construction. Steel frames can be plated and aluminum frames can be anodized per MIL-A 8626, Type 2 or chemical coated per MIL-C- 5541, Type 1.

Performance

Resistance: .080” water @ 178 FPM to .265” water at 356 FPM. Average dust arresting efficiency is 77% using standardized dust and testing methods.

Sizes

Wide ranges of standard-size P1 filters are available. Filter thickness is ½”-1”. P1 panels are available in circular shape to fit your custom applications.

Installation

It is important no air by allowed to by-pass edge around filter. Felt, neoprene, or other suitable materials should by used to form an adequate seal on the perimeter around the edge of the filter panel.

Servicing

The P1 can be cleaned in water and detergent solution or a suitable solvent. When dry, apply an even coat of adhesive. May be serviced as often as necessary without impairing efficiency.

P1 filters are classified by Underwriters Laboratories Inc.®

Common Sizes, Capacities and Weights

Part Number	Nominal Size	CFM Capacity @ 356FPM	Shipping Weight (Est. LBS)
126007-007 126007-013 126007-022 126007-041 126007-047 126007-066	4x5x1/2 8x8x1/2 10x15x1/2 6x12x1/2 6x7x1/2 9x9x1/2	20 70 150 75 35 85	.5 1 2 3.0 1.0 1.8
