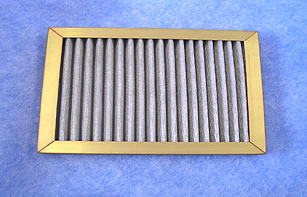

P61 Panels

High Efficiency Fine Dirt Filtration for Engine and Compressor Air Intake Systems and Electronic Cabinet Filtration Needs

Washable dry-type P61 filters are recommended for heating and ventilation applications where higher filtering efficiency is required on fine dirt particles. Maintenance is minimal. The P61 is a surface-loading filter that should not be reversed when dirty.

Construction

Filter media is non-woven polyester encased between layers of aluminum screen cloth. Deeply pleated to afford maximum dirt-holding capacity, the filter media is made from materials included in the list of fungus inert materials. The standard P61 has a galvanized enclosing channel, while corrosion resistant finishes such as chemical conversion coating or anodize are available on the special P61AA aluminum styles.

Common Sizes, Capacities and Weights

Construction

Media

Channels

Over 1” thickness

Standard P61

Non-woven polyester encased between 2 layers of 18x16 aluminum screen cloth

Enclosing channel
22 gage galvanized steel

Media uses 6X6 aluminum screen cloth

Special P61 AA

Non-woven polyester encased between 2 layers of 18x16 aluminum screen cloth

Enclosing channel
20 gage aluminum

Media uses 6X6 aluminum screen cloth

Performance

Filter efficiency of the P61 ranges to 71% at face velocity of 356 fpm using standardized test dust and methods. Resistance at 356 fpm through a 2” thick clean filter is .07” H 2 O and about .08” through a 1” filter. Varying velocities will not appreciably change efficiency.

Sizes

Standard sizes are available in nominal 1” and 2” thicknesses. Panels are available in less than 1” thicknesses on special order.

Servicing

The P61 can often be adequately cleaned with a vacuum cleaner. If necessary, excessive dirt can be removed by washing with water, or solution of water and mild detergent. Media dries quickly and does not require to be re-charged.

P61 filters are classified by Underwriters Laboratories Inc.®

Part Number

Nominal Size

CFM Capacity
@ 356FPM

Shipping Weight
(Est. LBS)

121907-1

121908-1

121909-1

121910-1

121819-1

121820-1

121821-1

121822-1

16x20x1

16x25x1

20x20x1

20x25x1

16x20x2

16x25x2

20x20x2

20x25x2

640

800

800

1050

640

800

800

1050

1.5

3.5

3.0

3.5

3.5

4.0

4.5

5.0

Note: Other sizes available on request.

Panels:

Request a Panels brochure in PDF Format

Falls Filtration Technologies reserves the right to change any model or specification at any time without notice.
